摘要: 文章主要讲解在linux中如何在docker上部署安装Oracle数据库软件

1. 安装前准备

在进行Oracle的安装时我们首先需要安装Docker容器,关于Oracle的安装我们在之前的文章中有,如果不懂Docker的可以先看这篇文章:Docker 的安装与简单命令

好了我们前期环境都准备好了,可进入正题了~

2. Oracle的安装

  • 通过 docker search oracle 可以查看查看有哪些资源
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

[root@localhost ~]# docker search oracle
NAME DESCRIPTION STARS OFFICIAL AUTOMATED
oraclelinux Official Docker builds of Oracle Linux. 642 [OK]
jaspeen/oracle-11g Docker image for Oracle 11g database 156 [OK]
oracleinanutshell/oracle-xe-11g 89
oracle/graalvm-ce GraalVM Community Edition Official Image 60 [OK]
oracle/openjdk Docker images containing OpenJDK Oracle Linux 60 [OK]
absolutapps/oracle-12c-ee Oracle 12c EE image with web management cons… 38
araczkowski/oracle-apex-ords Oracle Express Edition 11g Release 2 on Ubun… 29 [OK]
oracle/nosql Oracle NoSQL on a Docker Image with Oracle L… 23 [OK]
bofm/oracle12c Docker image for Oracle Database 23 [OK]
datagrip/oracle Oracle 11.2 & 12.1.0.2-se2 & 11.2.0.2-xe 18 [OK]
...
...
  • 我们这里直接用 docker pull 镜像名 获取镜像

我们指定了用阿里的 registry.cn-hangzhou.aliyuncs.com/helowin/oracle_11g

1
2
3
4
5
6
7
8
9
10
11

[root@localhost ~]# docker pull registry.cn-hangzhou.aliyuncs.com/helowin/oracle_11g
Using default tag: latest
latest: Pulling from helowin/oracle_11g
ed5542b8e0e1: Pull complete
a3ed95caeb02: Pull complete
1e8f80d0799e: Pull complete
Digest: sha256:4c12b98372dfcbaafcd9564a37c8d91456090a5c6fb07a4ec18270c9d9ef9726
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/helowin/oracle_11g:latest
registry.cn-hangzhou.aliyuncs.com/helowin/oracle_11g:latest

  • 等待拉取镜像,等成功后我们可以通过 doker images 查看本地镜像
1
2
3
4
5
6
7
8
9

[root@localhost ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
registry.cn-hangzhou.aliyuncs.com/helowin/oracle_11g latest 3fa112fd3642 4 years ago 6.85GB

```

* 创建容器应用 通过 `docker run` 命令,关于命令的具体使用请参考之前文章[Docker 的安装与简单命令](https://i-code.online/2019/09/14/Docker%E5%AE%89%E8%A3%85%E4%B8%8E%E4%BD%BF%E7%94%A8/)

[root@localhost ~]# docker run -d -p 1521:1521 –name oracle_11g registry.cn-hangzhou.aliyuncs.com/helowin/oracle_11g
2594effc414c8301bf1fbf41fe21388b2afbaa72993e7b7cea3850663c37972d

1
2

创建完后我们通过 `docer ps` 查看运行的容器情况

[root@localhost ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2594effc414c registry.cn-hangzhou.aliyuncs.com/helowin/oracle_11g “/bin/sh -c ‘/home/o…” About a minute ago Up About a minute 0.0.0.0:1521->1521/tcp oracle_11g

1
2
3
4
5
6
7

> 到这里我们的Oracle创建基本结束了,接下来我们进行Oracle的设置和启动

### 3. Oracle容器的启动与设置

* 启动容器 `docker start 容器名字`

[root@localhost ~]# docker start oracle_11g
oracle_11g

1
2
3
4
5

* 进入镜像

> docker exec -it 容器名 bash

[root@localhost ~]# docker exec -it oracle_11g bash
[oracle@2594effc414c /]$

1
2
3
4
5
6

* 进行相应的配置



1. 切换到 `root` 用户 `su root` ,这里密码是 `helowin`

[oracle@2594effc414c /]$ su root
Password:
[root@2594effc414c /]#

1
2
3

2. 编辑 `profile` 文件配置 `ORACLE` 环境变量

[root@2594effc414c /]# vi /etc/profile

1
2

在文件末尾加入下面内容:

export ORACLE_HOME=/home/oracle/app/oracle/product/11.2.0/dbhome_2
export ORACLE_SID=helowin
export PATH=ORACLEHOME/bin: ORACLE_HOME/bin: ORACLE

1
2
3

3. 创建软连接,并返回Oracle用户

[root@2594effc414c /]# ln -s $ORACLE_HOME/bin/sqlplus /usr/bin
[root@2594effc414c /]# su - oracle
[oracle@2594effc414c ~]$

1
2
3

4. 登录sqlplus–修改sys、system用户密码–创建用户

[oracle@2594effc414c ~]$ sqlplus /nolog

SQL*Plus: Release 11.2.0.1.0 Production on Thu Apr 9 10:47:56 2020

Copyright (c) 1982, 2009, Oracle. All rights reserved.
SQL> conn /as sysdba
Connected.
SQL>

1
2

主要命令:

修改密码:
alter user system identified by system;
alter user sys identified by sys;
ALTER PROFILE DEFAULT LIMIT PASSWORD_LIFE_TIME UNLIMITED;
创建用户
create user test identified by test;
并给用户赋予权限
grant connect, resource, dba to test;

1
2

如下:

SQL> conn /as sysdba
Connected.
SQL> alter user system identified by system;

User altered.

SQL> alter user sys identified by sys;

User altered.

SQL> ALTER PROFILE DEFAULT LIMIT PASSWORD_LIFE_TIME UNLIMITED;

Profile altered.

SQL> exit
Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - 64bit Production
With the Partitioning, OLAP, Data Mining and Real Application Testing options

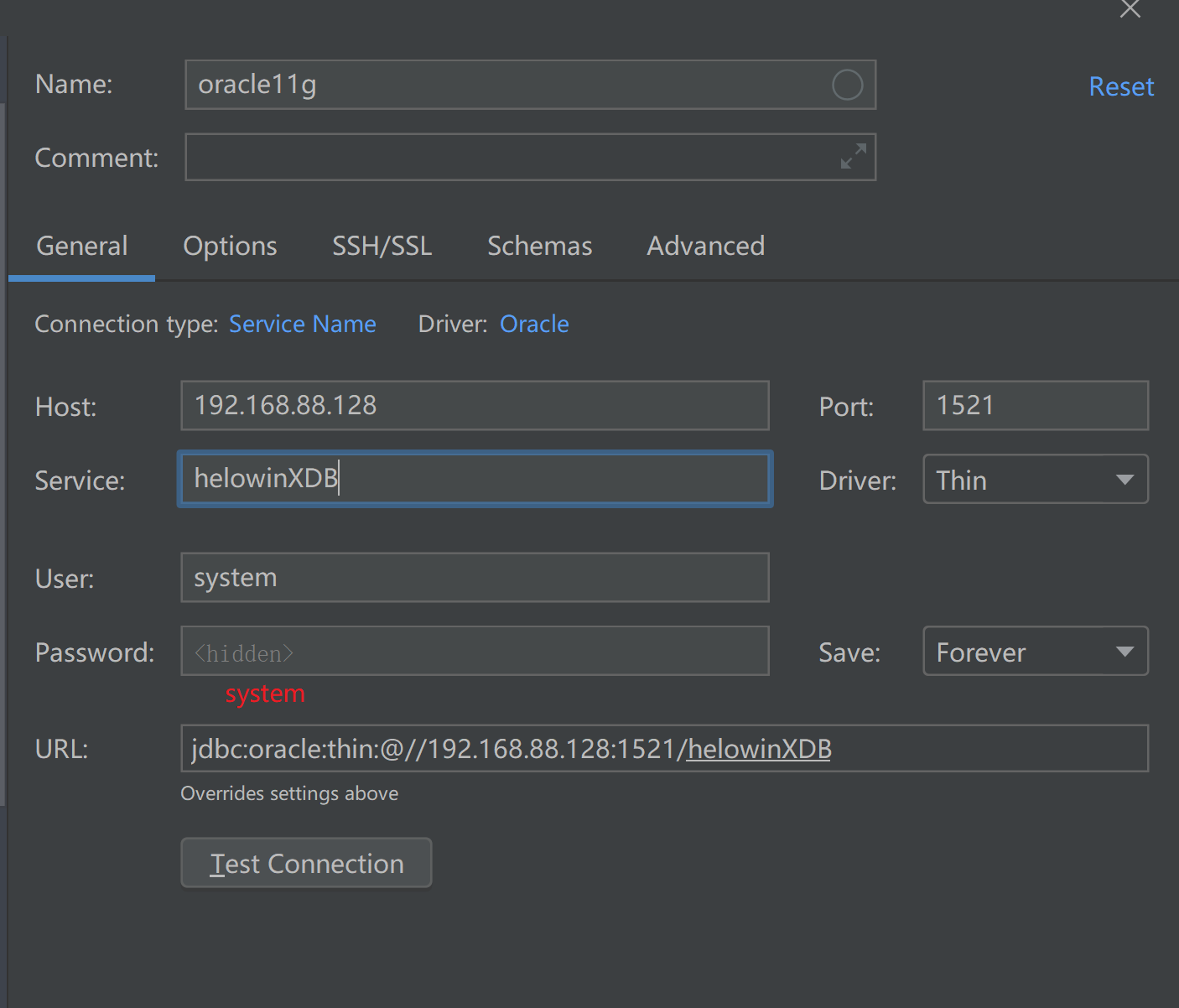

到这里位置我们就配置结束了,接下来可用工具来连接了,这里我们用 `DataGrip` 来连接测试

![img](https://cdn.jsdelivr.net/gh/it-briefcode/it-briefcode-images/images/datagrip-oracle.png)
